Scientific Programming Best Practices

Tom Westerhout
2 February 2021

Disclaimer

Contents

• Reproducibility;
  → keep track of your files
      → Version Control Systems (VCS)
• Correctness;
• Performance — some other time.

What is version control?

              $ ls
              main_fixed_eq5.tex  main_prb.tex  main_prl_final.tex
              main_prl.tex        main.tex      main_v2.tex
              $ # Thinking...
              $ cp main_prb.tex main_prb_final.tex

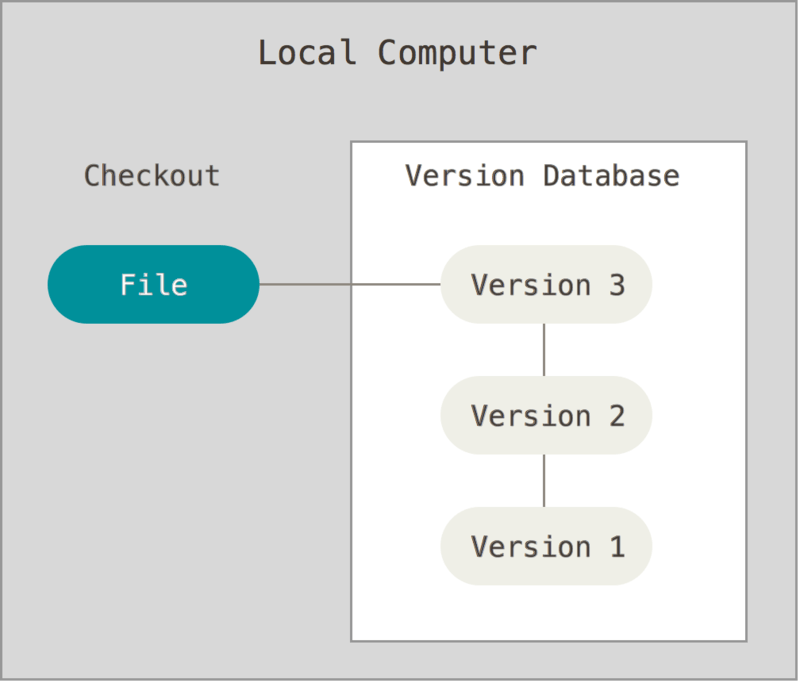

Local version control systems

• How to collaborate?
• Files are all in one place!

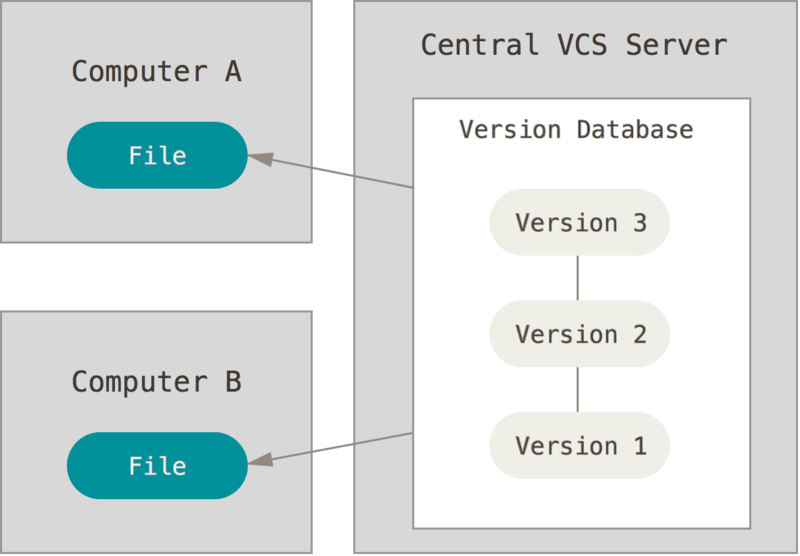

Centralized version control systems

• How to collaborate?
• Files are all in one place!

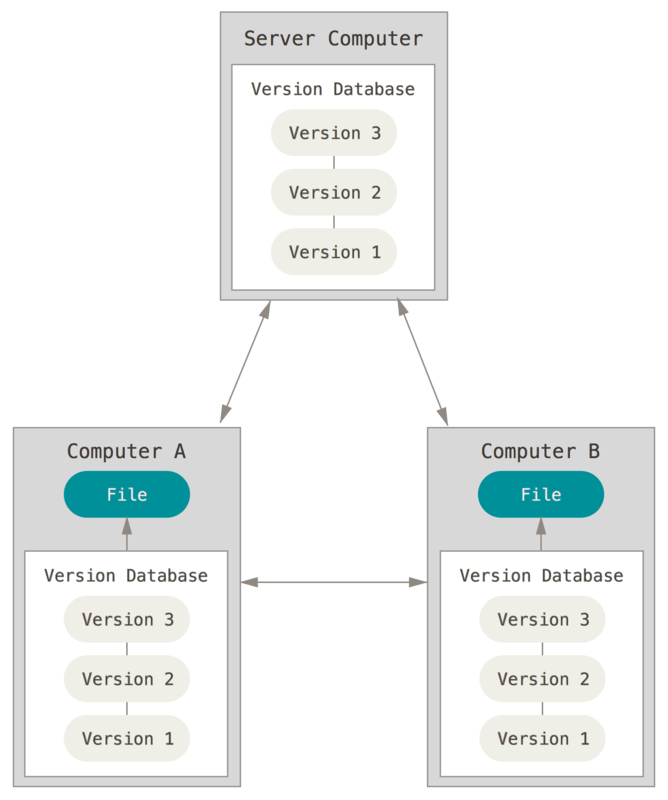

Distributed version control systems

• How to collaborate?
• Files are all in one place!

Git

Git

• Concepts;
• Examples & commands;

Repository (or Git project)

              quantum_skyrmions/
              ├── Analysis
              │   ├── 19_site_cluster.yml
              │   ├── 7_site_cluster.yml
              │   ├── slurm_main.sh
              │   └── SpinED-x86_64.AppImage
              ├── Drafts
              │   ├── paper.tex
              │   └── references.bib
              ├── Figures
              │   ├── ground_state_energy.pdf
              │   └── topological_invariant.pdf
              ├── Proofs
              ├── Published
              ├── Raw data
              │   ├── exact_diagonalization_result_19.h5
              │   └── exact_diagonalization_result_7.h5
              └── Submitted


History

• Commits are described by hashes (SHA),
  e.g. 9d33835a8e744c5f9cc950f672885dd706c0852f
• Hash function is any function that can be used to map data of arbitrary size to fixed-size values (Source: Wikipedia)

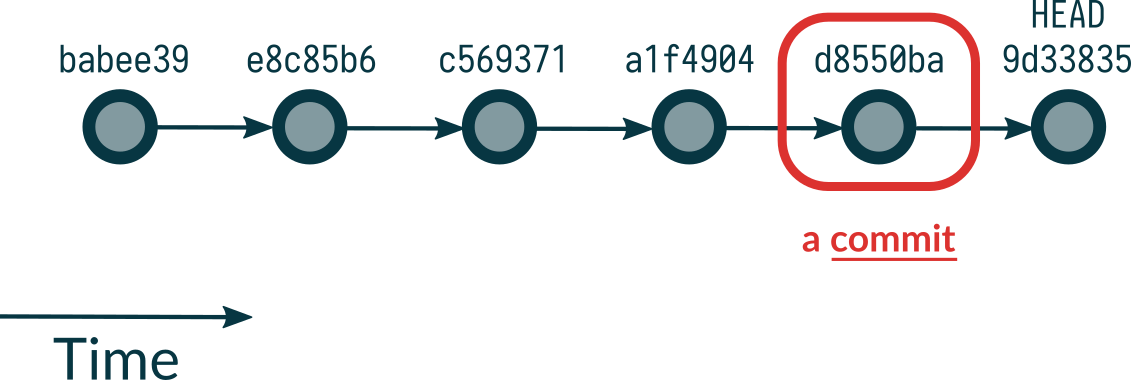

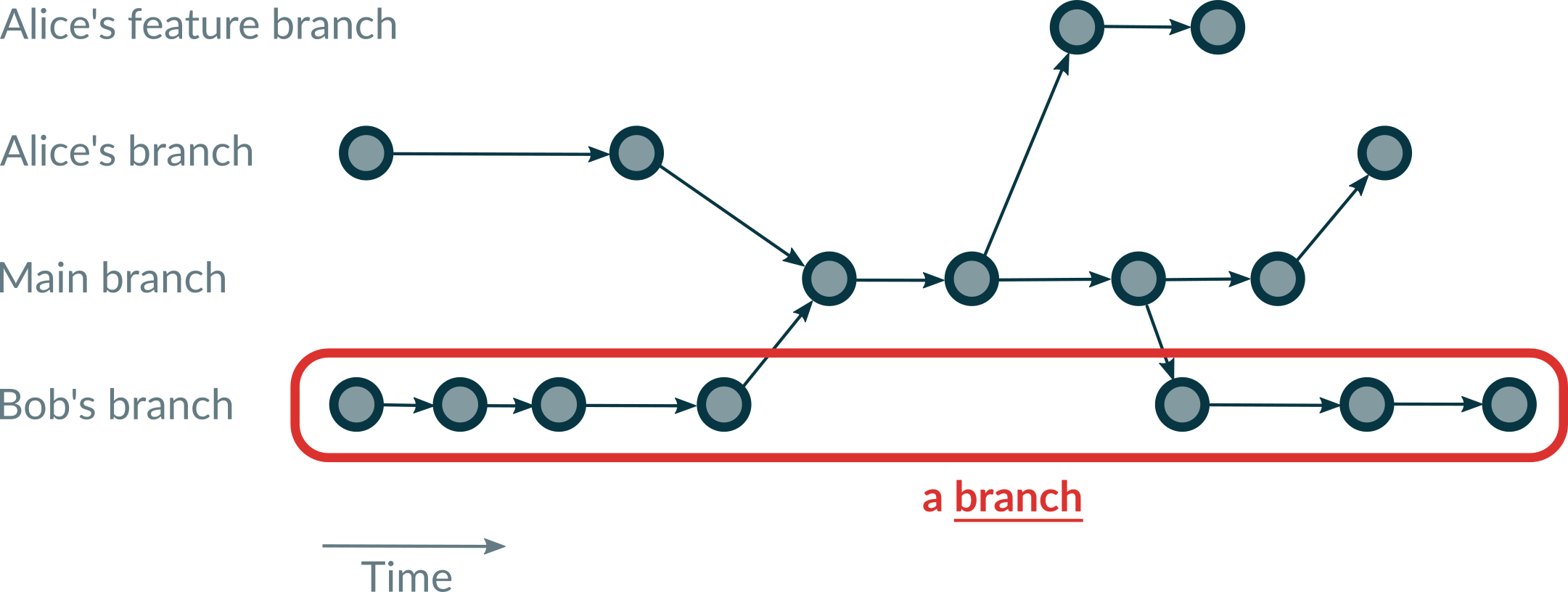

• Commits are assembled into linked lists:

History

Git

• Concepts (repository, commit, hash, branch);


  Questions?

• Examples & commands;

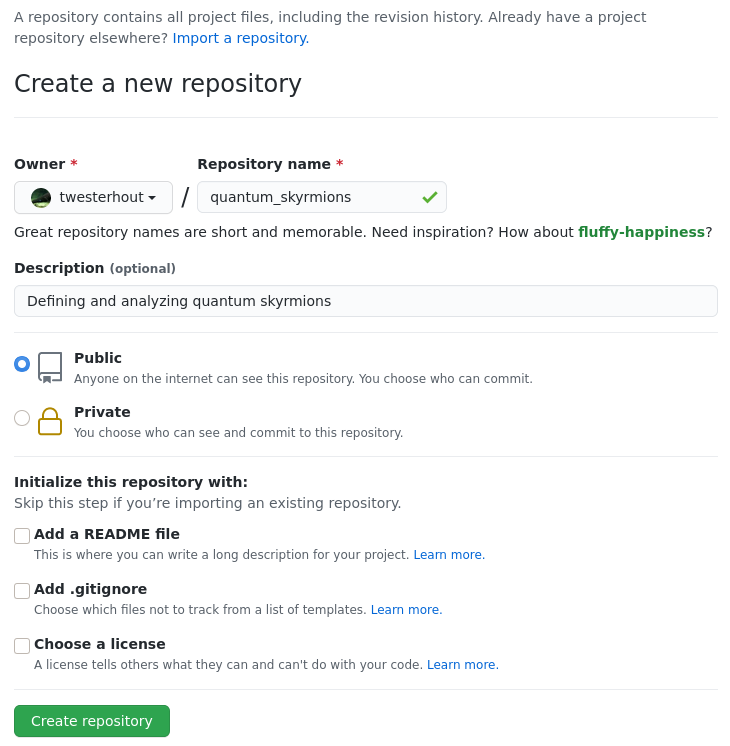

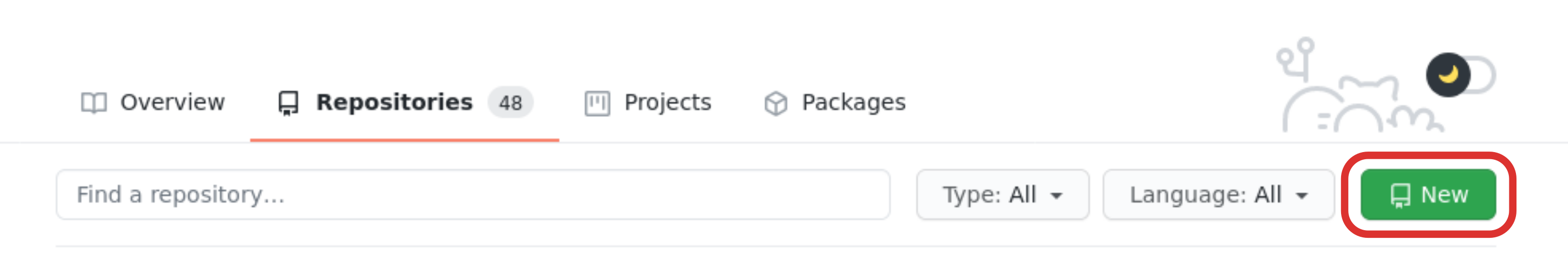

Example: creating a repository

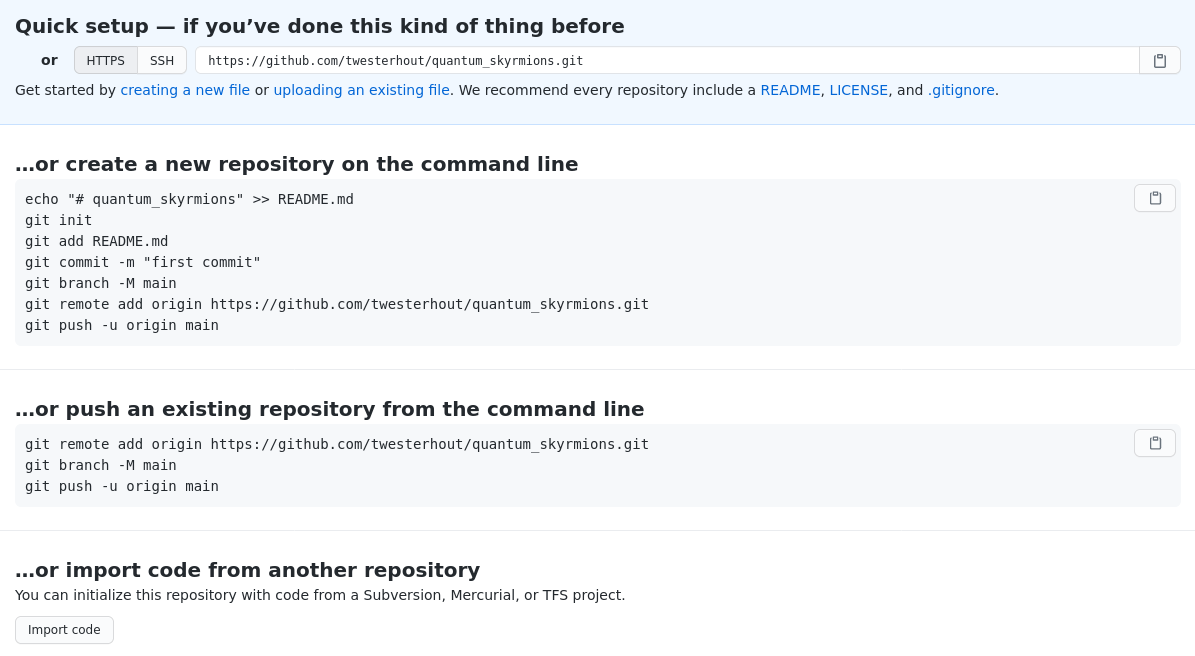

Example: following GitHub's instructions

              $ cd quantum_skyrmions/
              $ git init
              Initialized empty Git repository in .../quantum_skyrmions/.git/
              $ git remote add origin https://github.com/twesterhout/quantum_skyrmions.git


Example: cloning a repository

What your collaborators will do after you have created a repository:

              $ git clone https://github.com/twesterhout/quantum_skyrmions.git
              Cloning into 'quantum_skyrmions'...
              Username for 'https://github.com': username
              Password for 'https://username@github.com': password
              remote: Enumerating objects: 147, done.
              remote: Counting objects: 100% (147/147), done.
              remote: Compressing objects: 100% (119/119), done.
              remote: Total 147 (delta 30), reused 140 (delta 26), pack-reused 0
              Receiving objects: 100% (147/147), 2.46 MiB | 777.00 KiB/s, done.
              Resolving deltas: 100% (30/30), done.
              $ cd quantum_skyrmions/


Example: making changes to files

              $ vi "Analysis/SimpleTests.wl" # Making the changes...
              $ WolframKernel -script Analysis/SimpleTests.wl # Testing...
              Hello world!
              $ git add Analysis/SimpleTests.wl # Track SimpleTests.wl
              $ git commit -m "Implement hello world" # Commit to changes
              $ git push origin main # Uploading to remote server...
              Username for 'https://github.com': username
              Password for 'https://username@github.com': password
              Enumerating objects: 9, done.
              Counting objects: 100% (9/9), done.
              Delta compression using up to 8 threads
              Compressing objects: 100% (6/6), done.
              Writing objects: 100% (6/6), 496.66 KiB | 12.42 MiB/s, done.
              Total 6 (delta 2), reused 0 (delta 0), pack-reused 0
              remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
              To https://github.com/twesterhout/quantum_skyrmions
                 bd922d6..817e53d  main -> main


Example: updating

              $ cd quantum_skyrmions/
              $ git pull origin main # fetch & merge changes from remote
              Username for 'https://github.com': username
              Password for 'https://username@github.com': password
              remote: Enumerating objects: 5, done.
              remote: Counting objects: 100% (5/5), done.
              remote: Compressing objects: 100% (1/1), done.
              remote: Total 3 (delta 2), reused 3 (delta 2), pack-reused 0
              Unpacking objects: 100% (3/3), 1.76 KiB | 451.00 KiB/s, done.
              From https://github.com/twesterhout/quantum_skyrmions
               * branch            main       -> FETCH_HEAD
                 817e53d..88e8c26  main       -> origin/main
              Updating 817e53d..88e8c26
              Fast-forward
               SimpleTests.wl | 139 ++++++++++++++++++++++++++++++++--------
               1 file changed, 114 insertions(+), 25 deletions(-)


Git

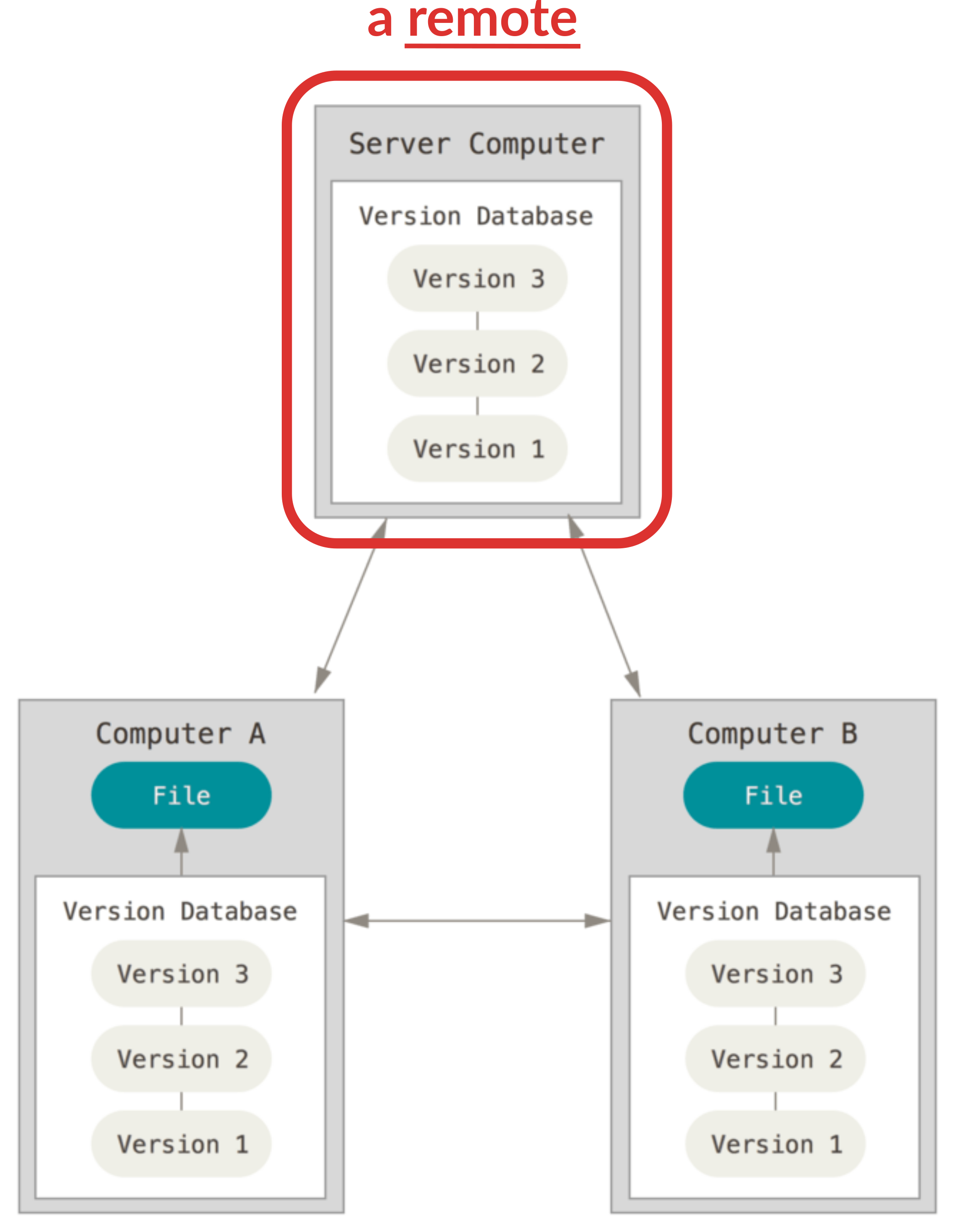

• Concepts (repository, commit, hash, branch, remote)
• git init — create new local repository
      remote add — add new remote repository
      clone — clone an existing repository
      add — add some changes to the next commit
      commit — commit changes
      push — publish local changes on a remote
      pull — get all changes from remote to local repository
      status — view changes in working directory


Guideline: have a repository for every project you work on

What to do with data?

Git is not meant to be used with large files!

Git Large File Storage (LFS)

• Git servers take care of storing the files;
• Tell git-lfs to track specific files:


                      $ git lfs track "*.h5" # Track all HDF5 files
                      Adding path *.h5
                      $ git add "heisenberg_37.h5" # Work using standard git commands


• Storage limits:

  GitHub Free	2G
  GitLab.com Free	10G
  Science GitLab	10G (probably)

Data Version Control (DVC)

• Git-like workflow, e.g. dvc add, dvc push etc.
• You choose where data is stored. Suggestion:
    if you are broke (like me)
      then Surfdrive (500G per RU employee)
      else Amazon S3 (easier to collaborate)


  (In the nearest future, Ceph storage cluster managed by C&CZ might get you best of both)

Keeping track of files

• Have a repository for every project you work on!
• Git LFS for keeping track of production datasets
  (i.e. data to reproduce your figures).
• (optional) DVC for keeping track of "work-in-progress" data.

Questions?

Reproducibility

• Sharing your environment
• Making your code portable

Sharing your environment: virtualization

Virtualization: levels

• Virtual machines (e.g. VirtualBox, Windows Subsystem for Linux):
  • abstracts everything including the kernel;
  • performance overhead;
• Containers (e.g. Docker, Singularity):
  • reuses the kernel, but abstracts everything else
  • no performance overhead
• Virtual environments (e.g. venv, Conda):
  • abstracts only certain applications
  • no performance overhead

Conda

• Packages — programs, libraries, etc.
• Environments consist of packages

Pre-installed on TCM cluster.
module load Tcm; module load Anaconda-3-2020.07
and you are good to go.

Example: creating environments from files

            $ # Creating an environment...
            $ conda env create -f conda-devel.yml
            $ # Adding to git...
            $ git add conda-devel.yml
            $ git commit -m "Create environment"


                name: lattice_symmetries_devel
                channels:
                  - defaults
                  - weinbe58 # for QuSpin
                dependencies:
                  - python
                  - pip:
                    - black
                    - neovim
                    - loguru
                  - numpy
                  - scipy
                  # Stuff to compile the package locally
                  - gcc_linux-64
                  - gxx_linux-64
                  - cmake
                  - ninja
                  # For benchmarks and testing
                  - numba ==0.48 # QuSpin doesn't work with the latest version
                  - omp # Get multi-threading support for QuSpin
                  - quspin
                  ...


Conda

Guideline: have a Conda environment for every project you work on

Singularity

Example: creating a container

              $ # no GPU locally...
              $ nvcc hello.cu -o hello
              bash: nvcc: command not found
              $ # Singularity to the rescue!
              $ singularity build hello.sif Singularity
              INFO:    Starting build...
              INFO:    Running setup scriptlet
              + mkdir -p /workdir
              INFO:    Copying hello.cu to /workdir/
              INFO:    Running post scriptlet
              + /bin/bash /.post.script
              INFO:    Adding runscript
              INFO:    Creating SIF file...
              INFO:    Build complete: hello.sif


              __global__ void cuda_hello() {
                  printf("Hello World from GPU!\n");
              }

              int main() {
                  cuda_hello<<<1, 1>>>();
                  return 0;
              }


                Bootstrap: docker
                From: nvidia/cuda:11.0-devel-ubuntu20.04

                %setup
                    mkdir -p ${SINGULARITY_ROOTFS}/workdir

                %files
                    hello.cu /workdir/

                %post
                    cd /workdir
                    nvcc hello.cu -o hello

                %runscript
                    /workdir/hello


Disclaimer: this is an advanced example

Reproducibility

• Sharing your environment (Conda & Singularity).
  Questions?

• Making your code portable:
  → Static executables
  → AppImages


Static executables

              $ # Compiling locally...
              $ g++-10 -std=c++20 thread.cpp -o thread -lpthread
              $ # Works locally
              $ ./thread
              Stopping...
              $ # And on lilo6
              $ scp thread lilo.science.ru.nl:
              $ ./thread
              $ ssh lilo6.science.ru.nl ./thread
              Stopping...
              $ # But breaks on lilo5
              $ ssh lilo5.science.ru.nl ./thread
              [...] version `GLIBCXX_3.4.22' not found [...]
              $ # Compile statically!
              $ g++-10 -std=c++20 thread.cpp -o thread \
                  -static -static-libgcc -static-libstdc++ \
                  -Wl,--whole-archive -lpthread -Wl,--no-whole-archive
              $ # Now works on lilo5 as well!
              $ scp thread lilo.science.ru.nl:
              $ ssh lilo5.science.ru.nl ./thread
              Stopping...


              #include <chrono>
              #include <cstdio>
              #include <thread>

              auto main() -> int {
                using namespace std::chrono_literals;
                // A sleepy worker thread
                auto sleepy_worker = std::jthread{
                  [](std::stop_token stoken) {
                    for (;;) {
                      std::this_thread::sleep_for(100ms);
                      if (stoken.stop_requested()) {
                        std::printf("Stopping...\n");
                        return;
                      }
                    }
                }};
                sleepy_worker.request_stop();
                sleepy_worker.join();
              }


AppImage

Linux apps that run anywhere

              $ # Hmmm, our cluster does not have NeoVim installed...
              $ # No problem!
              $ wget -q https://github.com/neovim/neovim/releases/download/v0.4.4/nvim.appimage
              $ chmod +x nvim.appimage
              $ # Yay!
              $ ./nvim.appimage


• Main idea: bundle all dependencies together with the executable.
• Great for cases when static linking is not an option.

Reproducibility

• Sharing your environment (Conda & Singularity).
• Making your code portable (Static linking & AppImages).


  Questions?

Correctness

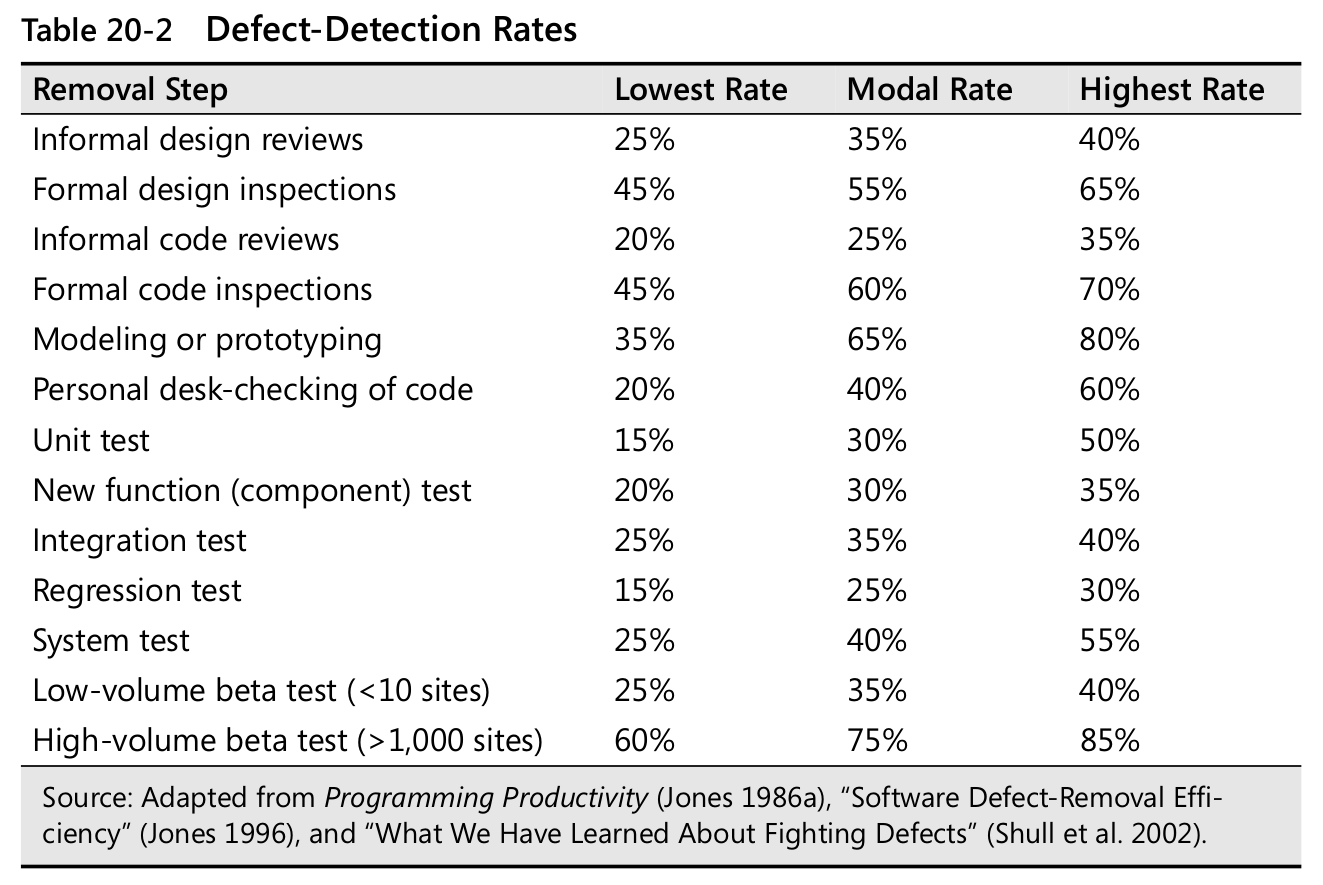

Source: Code Complete, by Steve McConnell

• Code reviews.
• Tests.
• Proofs & formal verification methods — some other time.
• etc. — some other time.

Code reviews

Guideline: have at least one other person read and understand your code

Tests: 0

Guideline: have tests for every project you work on

Tests: 1

                $ pytest
                ========================== test session starts ===========================
                platform linux -- Python 3.x.y, pytest-6.x.y, py-1.x.y, pluggy-0.x.y
                cachedir: $PYTHON_PREFIX/.pytest_cache
                rootdir: $REGENDOC_TMPDIR
                collected 1 item

                test_sample.py F                                                    [100%]

                ================================ FAILURES ================================
                ______________________________ test_answer _______________________________

                    def test_answer():
                >       assert inc(3) == 5
                E       assert 4 == 5
                E        +  where 4 = inc(3)

                test_sample.py:6: AssertionError
                ======================== short test summary info =========================
                FAILED test_sample.py::test_answer - assert 4 == 5
                =========================== 1 failed in 0.12s ============================


                  def inc(x):
                      return x + 1

                  def test_answer():
                      assert inc(3) == 5


Tests: 0.5

Level 0.5 (i.e. a half measure): use asserts excessively, e.g.

              # Python
              assert x > 0, "real log is undefined for negative inputs"


              // C and C++
              assert(x > 0 && "real log is undefined for negative inputs");


              # Julia
              @assert x > 0 "real log is undefined for negative inputs"


Tests: 2

                name: Ubuntu
                env:
                  BUILD_TYPE: Debug
                  INSTALL_LOCATION: .local
                jobs:
                  build:
                    strategy:
                      matrix:
                        gcc-version: [7, 8, 9, 10]
                    runs-on: ubuntu-latest
                    steps:
                    - uses: actions/checkout@v2
                      with:
                        submodules: true
                    - name: configure
                      run: |
                        cmake -Bbuild \
                          -DCMAKE_CXX_COMPILER=g++-${{ matrix.gcc-version }} \
                          -DCMAKE_C_COMPILER=gcc-${{ matrix.gcc-version }} \
                          -DCMAKE_BUILD_TYPE=$BUILD_TYPE \
                          -DCMAKE_INSTALL_PREFIX=$GITHUB_WORKSPACE/$INSTALL_LOCATION
                    - name: build
                      run: cmake --build build -j4
                    - name: run tests
                      run: cd build && ctest -VV
                    - name: install project
                      run: cmake --build build --target install


Tests

Guideline: reach at least level 0.5 when developing code

Guideline: reach at least level 1 when publishing a paper

Recap

• Reproducibility:

  • Git repository for every project;
  • Per-project Conda environments;
• Correctness:

  • At least one person understood your code;
  • Asserts when writing new code;
  • Unit testing before producing publishable results;
• These slides:
  https://twesterhout.github.io/programming-practices-talk-2021
